dual logic™ roller
by: Designed Blinds Australia®
internal products

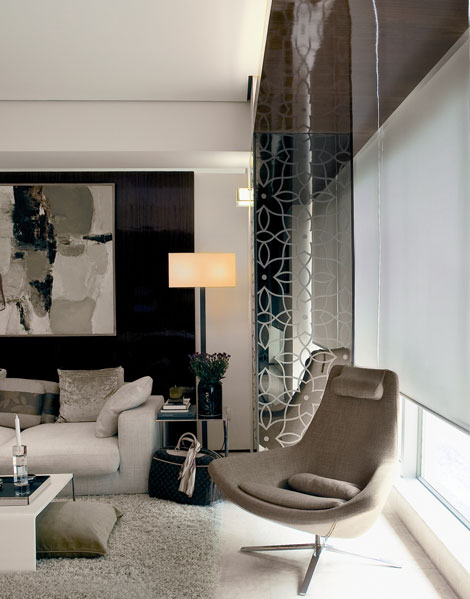

Single + Dual Roller Blinds
Motors fit discreetly into the rollers’ tube making the blind highly adaptable to motorisation. The Dual option allows for two rollers on the one bracket, the combination of sheer and block out fabrics give the perfect control of light and privacy day or night.
motorised options
| product code |
min/max sizes |
linking blinds |
dual option |
min. bulkhead clearance* |
|
|---|---|---|---|---|---|
| HM43 | 50-280cm | 2 | yes | 10x10cm (1) 15x15cm (2) | |
| HM50 | 70-260cm | 4 | yes | 13x15cm (1) 16x18cm (2) | |
| HM60 | 70-320cm | 5 | yes | 14x15cm (1) 17x18cm (2) | |
| HM65 | 70-340cm | 5 | yes | 15x15cm (1) 18x19cm (2) | |
| HM80 | 80-380cm | no | no | 17x18cm | |
| HM100 | 90-440cm | no | no | 19x19cm | |
| Linking blinds through angles windows available Note: (1) Clearance for Single System and (2) Clearance for Dual System |
|||||
| product code |
min/max sizes |
linking blinds |
dual option |
min. bulkhead clearance* |
|
|---|---|---|---|---|---|
| SG4450/60 | 55-300cm | 4 | no | 12x10cm | |
| SG4450/80 | 55-450cm | 4 | no | 15x12cm | |
| Linking blinds through angles windows available Dual option not available |
|||||
| product code |
min/max sizes |
linking blinds |
dual option |
min. bulkhead clearance* |
|
|---|---|---|---|---|---|
| logic™ 43 | 58-263cm | 3 | yes | 7x10cm (1) 15x15cm (2) | |
| logic™ 60 | 70-343cm | 3 | yes | 10x13cm(1) 15x18cm(2) | |
| logic™ 80 | 70-423cm | 3 | no | 15x15cm | |
| Linking blinds through angles windows available Note: (1) Clearance for Single System and (2) Clearance for Dual System |
|||||
manual options
| product code |
min/max sizes |
linking blinds |
dual option |
GR | min. bulkhead clearance* |
|
|---|---|---|---|---|---|---|
| Hch43* | 50-280cm | 3 | yes | 1:1 | 7x10cm (1) 15x15cm (2) | |
| booster 48 | 60-280cm | 2 | yes | 1:2 | 13x15cm (1) 16x15cm (2) | |
| metaco 5 | 70-300cm | 4 | yes | 1:3 | 13x15cm (1) 16x17cm (2) | |
| metaco 6 | 70-340cm | 4 | no | 1:9 | 15x16cm (1) | |
| metaco 8 | 80-440cm | 4 | no | 1:7 | 16x17cm | |
| GR (Gearing Ratio) HCH43* has the option of incorporating a Spring Assist (SA) as an optional extra for windows with larger widths and drops Facia/Head Box Cassettes available limited to maximum width of 220cm Linking blinds through angles windows available |
||||||
| product code |
min/max sizes |
linking blinds |
dual option |
GR | min. bulkhead clearance* |
|
|---|---|---|---|---|---|---|
| sg4200 | 46-340cm | 2 | no | spring | 9x10cm | |
| sg4210 | 46-240cm | 2 | no | 2:1 | 9x10cm | |
| sg4810df | 50-200cm | 2 | no | 9x11cm | ||
| sg4840/60 | 50-300cm | 3 | no | 12x15cm | ||
| sg4840/80 | 50-450cm | 3 | no | 15x18cm | ||
| GR (Gearing Ratio) The SG4200 is a spring only system, with a unique decelerator to ensure controlled ascent of even the largest roller. A rotary clutch enables the blind to be pulled down and stopped in any position, every time Linking blinds through angles windows available |
||||||
| product code |
min/max sizes |
linking blinds |
dual option |
min. bulkhead clearance* |
|
|---|---|---|---|---|---|
| logic™ 43* | 58-263cm | 3 | yes | 7x10cm (1) 15x15cm (2) | |
| logic™ 60 | 70-343cm | 3 | yes | 10x13cm(1) 15x18cm(2) | |
| logic™ 80 | 70-423cm | 3 | no | 15x15cm | |
| logic™ 43* has the option of incorporating a Booster Spring as an optional extra for windows with larger widths and drops Linking blinds through angles windows available |
|||||
(*) Bulkhead Clearances Definition
Sizes given represent the minimum inside measure required, width x height. Size (1) is for a single system (2) is for a Dual system. Please note adequate fixing is required for fixing the brackets into a ceiling bulkhead, use Timber, Ply or MDF. Plasterboard or Gyprock alone is not suitable. Caution: Long drops may require additional clearance, contact Modular for further details.
