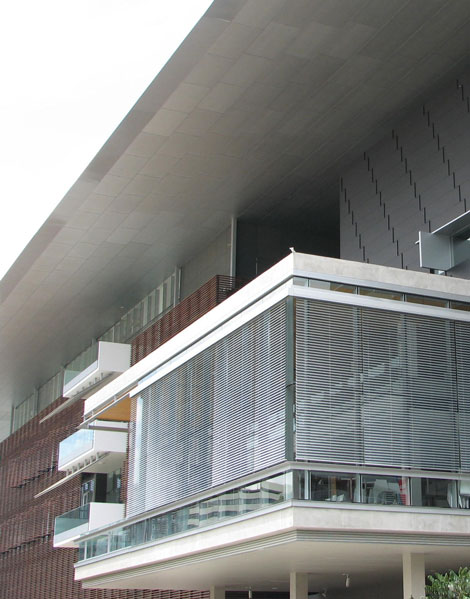

External Venetian Blinds by Horiso

The Horiso external Venetian blinds are made from components designed to withstand wind loads up to 77kpm. The blades are made from crowned aluminium and use a highly elastic alloy making it bend proof, scratch proof and shock proof, they are then finished with a polyester coil coated enamel baked surface. This makes the Horiso External Venetian a highly resilient external product.

Blades are available in 80mm and 100mm widths, with either solid or perforated styles and available in six colours. You can achieve widths up to 6.0 metres and 9.0 metres drop with a limit of 45 square metres overall per blind.

Horiso systems use HDPE [PVC free] coated stainless steel tensioned guide wires. Blinds over 3.0m in width will require an extra guide wire. The location of the extra cable doesn’t need to be centred exactly; we can specify the location to align with a window mullion or other feature.

Download

Horiso Brochures

Drawings + Specifications

Horiso EVB 80 AK-G [80mm blades with widths larger than 3.0m wide]
Horiso EVB 100 AK-G [100mm blades with widths larger than 3.0m wide]
Horiso EVB 80 AK-S [80mm blades with widths less than 3.0m wide]
Horiso EVB 100 AK-S [100mm blades with widths less than 3.0m wide]
Horiso Face Fixing bracket-b
Horiso Face Fixing bracket-c
Horiso Top Fixing pelmet
Horsio EVB Packing Heights and Pelmet Extension Calculations
